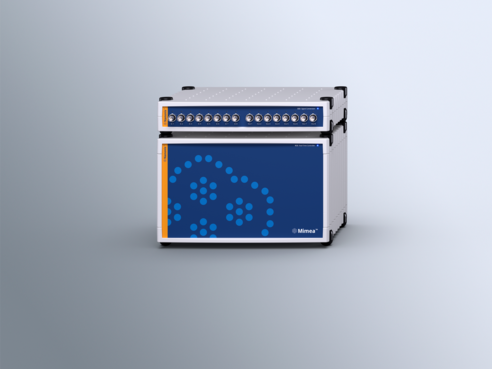

Mimea BP6 Base Package
The sixth-generation Nanonis Mimea base package represents a new benchmark for scanning probe microscopy (SPM)
Following the Nanonis core philosophy that the measurement instruments should never be the limiting factor in a scientific experiment, the system has undergone continuous product development driven directly by the needs of the SPM community. This unique collaboration has resulted in over a hundred new features and specialized solutions, developed by an in-house software engineering team determined to provide effective solutions and new features in a short time.
This sixth generation Nanonis Mimea base package addresses current and future demands through a ground-up redesign. And while the external appearance might seem familiar, the completely new hardware design and software architecture are capable of delivering performance levels previously considered inconceivable. Paired with a higher degree of modularity, the new architecture lays a solid foundation for further decades of continuous development.
KEY FEATURES
- Advanced high-speed data processing architecture
- A new standard in signal quality for data acquisition and signal generation
- Unparalleled flexibility in signal modulation and mixing
- Optimal I/O placement capability via galvanically isolated optical interconnects
- Ready and open for AI integration

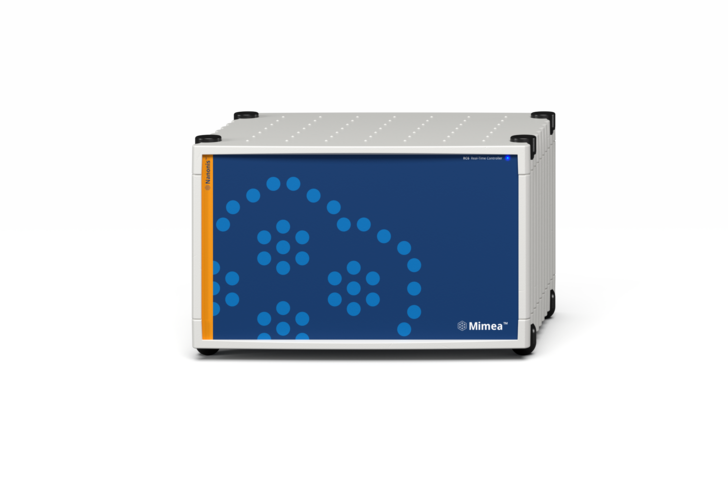

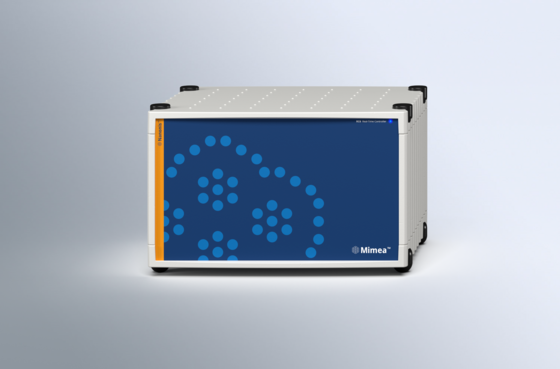

RC6 Real-Time Controller
The all new RC6 real-time controller provides direct visualization of all raw signals, eliminating the need for pre-processing. This low-latency design supports 7× higher transfer rates and 200 MS/s sampling with synchronous I/O.
Optimized for low HF signatures and distributed measurements, it uses galvanically isolated optical fibers to connect interfaces to the RC6 core. To manage over 128 I/O channels and 200+ simultaneous signals, the RC6 utilizes a larger FPGA, a powerful CPU, and faster storage.

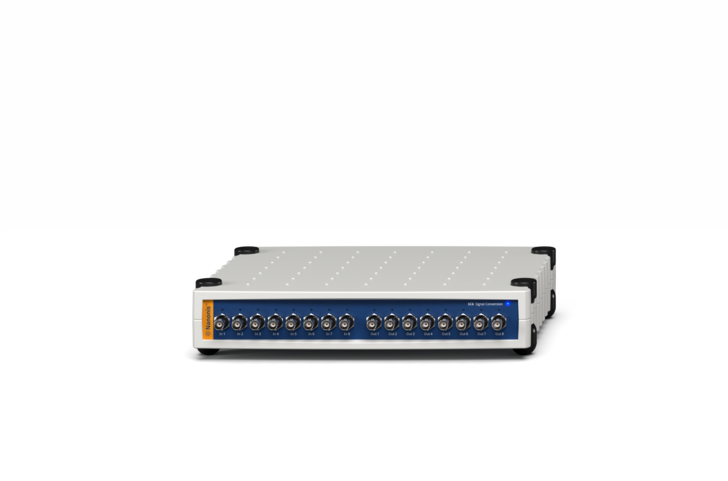

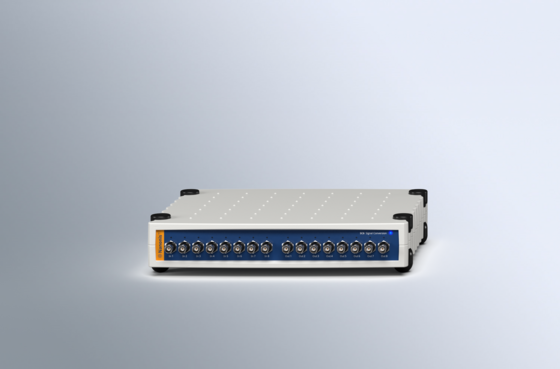

SC6 Signal Conversion
The new SC6 signal conversion modul provides state-of-the-art performance with 24-bit 2 MS/s ADCs, delivering 3× lower noise and 8× higher resolution. True-differential inputs and AC-coupling detect minimal modulations, while the 31-bit DAC architecture removes the need for external adders. Variable filters offer 6× higher bandwidth for stable feedback. With output noise up to 6× lower, all channels serve as monitored current sources up to 25 mA.
SPECIFICATIONS
| Computing | 6-core CPU, 8 GB RAM, 512 GB SSD, FPGA-card |
| Operating system | Linux RT |
| FPGA card | PXIe, high-speed serial interface |
| Connectivity | 4 × SC6 max., 2 × OC6 dual max. |
| Input | ___ |
| Hardware interface | 8 × BNC connectors, differential over 2 connectors, pseudodifferential, single-ended Shield on PE, GND or floating, user configurable |
| Differential input voltage range | ±10 V, ±1 V, ±100 mV (gain 1, 10, 100) |
| Input impedance | 100 MΩ, > 1 GΩ, user configurable |
| Input capacitance | < 40 pF |
| Input bias current | 1.5 pA typ., 2 pA max. |
| Input coupling | DC or AC, user-configurable |
| Analog bandwidth | DC-200 kHz (-3 dB) 6th order Bessel low-pass filter |
| AD-converter | 24-bit 2 MS/s |
| Effective resolution | > 25 bit with > 4000 × oversampling |
| INL / DNL | ±2 LSB / ±0.5 LSB typical |
| Input noise density at gain 100 | < 7 nV/√Hz > 100 Hz |
| Measurement noise at gain 100 | < 5 μVrms @ 2 MS/s |
| 0.1 Hz - 10 Hz noise at gain 100 | < 60 nVrms |
| SFDR, 50 % amplitude signal, 1 kHz | 50 % amplitude signal, 1 kHz: > 125 dB @ gain 1 |
| Output | ___ |
| Hardware interface | 8 × BNC connectors |
| Output voltage range | ±10 V, ±2.5 V |
| Output current range | ±25 mA, ±12.5 μA |
| Output impedance | < 1 Ω (25 mA), 1 kΩ (12.5 μA) |
| Analog bandwidth | DC-250 kHz (-3 dB), user-configurable |
| DA-converter | 31-bit DAC architecture with |
| Effective resolution | 23-bit typ., > 24-bit with 350 Hz |
| INL / DNL | < ±2 ppm max. / < ±1 ppm max. |
| Output noise density ±10 V range, high current | < 11 nV/√Hz > 1 kHz |
| Output noise density ±2.5 V range | < 3.5 nV/√Hz > 1 kHz |
| Output noise 10 – 300 kHz ±10 V range (250 kHz / 100 kHz / 20 kHz / 350 Hz filter) | < 6 μVrms / < 4.5 μVrms / |
| Output noise 0.1 Hz – 10 Hz ±10 V range | < 180 nVrms |
| Output noise 0.1 Hz – 10 Hz ±2.5 V range < 50 nVrms | < 50 nVrms |
| 12 h drift | < 25 μV p-p (@ 9.9 V) |
| * Specifications are subject to change without notice. | ___ |
