XR 50

The XR 50 is a high intensity dual anode X-ray source for XPS applications. The electron optical design of the anode, filament and source housing guarantees maximum X-ray intensity and very low crosstalk between the anode faces.

The XR 50 is a high intensity twin anode X-ray source optimized for XPS experiments. The anode is made of silver to avoid any CuLα breakthrough. Due to the use of dual anodes it is possible to switch between two different incident energies without the need to vent the system. Dual anodes with different material coatings are available on request. The electron optical design of the anode, filament and source housing guarantees maximum X-ray intensity and very low crosstalk between the anode faces.

A specially configured nose cone allows maximum access to the sample. A thin aluminium foil window over the end of the x-ray allows the source to be differentially pumped if required. In addition to the anode, the anode housing is as well very efficiently water-cooled in order to reduce the damage of the sample by thermal effects during operation. Even during longterm operation the sample temperature is not increased by more than 5 °C.

KEY FEATURES

  • Twin Anode
  • High intensity
  • Very low cross talk
  • Highly efficient water cooling of anode and anode housing
  • Extreme stability of power and voltage regulation

MADE FOR THESE METHODS

1

SPECIFICATIONS

XR 50
Operation
Power

300 W / 400 W for Mg/Al

Zr 100 W, Ag and Cu 600 W, all other anode materials 400 W

Maximum Anode Voltage

15 kV

Dual Anode

Yes

Working Conditions

UHV

Required Accessories

CCX 70 Isolation Unit

Closed-Cycle Water Cooling System

Optional Accessories

50 or 100 mm Z-shift

Monochromated

No

Mounting
Anode Materials Available

Standard Mg/Al

other materials available Ag, Cu, Cr, Yt, Ti, Zr, Au, Si

Power Supply

UXC 1000

Mounting Flange

DN40 CF

Insertion Depth

283 mm

Rowland Cirlce Diameter

n. a.

Performance
Cross Talk

< 0.35%

Spot Size

10 mm at a working distance of 15 mm

Photon Flux

8 x 1010 photons/s (Mg Kα, 300 W, working distance 20 mm)

8.3×1010 photons/s (Al Kα, 300 W, working distance 20 mm)

RELATED PRODUCTS

12

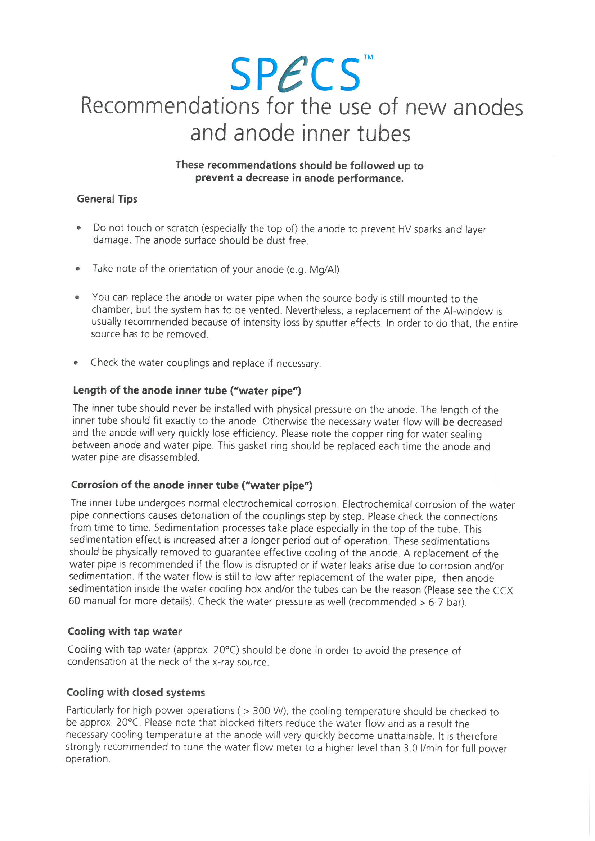

APPLICATION NOTES

SPARE PARTS

12
Product image
Product description
Article No.

Al/Mg Anode for XR 50

Standard anode for all XR 50 non monochromized sources

2011999020
Anode inner tube for XR 50 / XR-50 M / XR 50 HP

Water inlet flange for all XR 50 sources. SPECS recommends the exchange of this piece with every second anode axchange. Please also purchase 2055005929 Cu gasket

2074300987
Cathode for XR 50 with filament-ring

Cathode for all XR 50 models

2055014906
Centering bush for XR 50

Anode centering bush for all XR sources

2074300118
Cu gasket (DA 19.5 x 0.5 mm) for Anode

Cu gasket to seal the water inlet flange from the anode flange

2055005929
Mg/Cr Anode for XR 50

Special anode for XR50 non monochromized source for higher excertation energies with Mg and Cr coating

2011999060
Mg/Mg Anode for XR 50

Special anode for XR50 non monochromized source with Mg and Mg coating

2011999030
Mg/Zr Anode for XR 50

Special anode for XR50 non monochromized source for higher excertation energies with Mg and Zr coating

2011999040
Spare part set for Z-manipulator 100 mm(XR-50)

Replacement spindle set for 100 mm z-retract

2060014998
Spare part set for Z-manipulator 50 mm(XR-50)

Replacement spindle set for 50 mm z-retract

2060014995
XR 50 Dual X-ray Anode (Ag/Zr)

Special anode for XR50 non monochromized source for higher excertation energies with Ag and Zr coating

2100008752
X-ray window for XR 50

Aluminum window for XR50 non monochromized source

2074300113
