PHOIBOS 150 EP 2D-CCD/CMOS

State of the art hemispherical energy analyzer with 2D-CCD/CMOS detector for photoelectron spectroscopy measurements (XPS and UPS) in the pressure regime from UHV to elevated pressure regime (EP) up to 1 mbar.

The PHOIBOS 150 EP analyzer is an integral part of all PHOIBOS 150 NAP analysers, but in contrast to the NAP version is operating without the wide acceptance angle pre-lens. Therefore, it has 3 diferential pumping stages and can operate at pressures up to 1 mbar. The first differential pumping stage is separated from the analysis chamber by a nozzle with a customizable opening at the tip with diameters between 0.3 mm and 5 mm.

Depending on its configuration the PHOIBOS 150 EP can perform XPS und UPS measurements at pressures of up to 1 mbar. It offers full flexibility to be equipped with all available 1D and 2D detectors. The modular building concept enables the user to upgrade a PHOIBOS 150 EP to a full PHOIBOS 150 NAP analyzer by simply adding the pre-lens together with the corresponding electronics and additional differential pumping.

KEY FEATURES

  • Elevated working pressures up to 1 mbar depending on configuration
  • Upgradeable to complete PHOIBOS 150 NAP analyser including wide acceptance angle pre-lens
  • Up to 30° acceptance angle in angle in resolved and transmission mode
  • High energy and angular resolution
  • Working range up to 3.5 keV
  • Large pass energy range
  • 3 differential pumping stages
  • Fast detectors with high dynamic range for fast real time data acquisition in snapshot mode
  • Full detector flexibility (MCD, 1D-DLD, 2D-DLD, 2D-CCD/CMOS)

MADE FOR THESE METHODS

2

SPECIFICATIONS

PHOIBOS 150 EP 2D-CCD/CMOS
Operation
Energy Dispersion

Hemisphere

Slits/Apertures

8 Entrance, 3 Exit slits and Iris aperture

Magnetic Shielding

Double µ-Metal Shielding

Lens Modes

Angular Resolving, Transmission and Magnification (Lateral Resolved) Lens Modes

Kinetic Energy Range

0 - 3500 eV

Pass Energies

0 - 550 eV continously adjustable

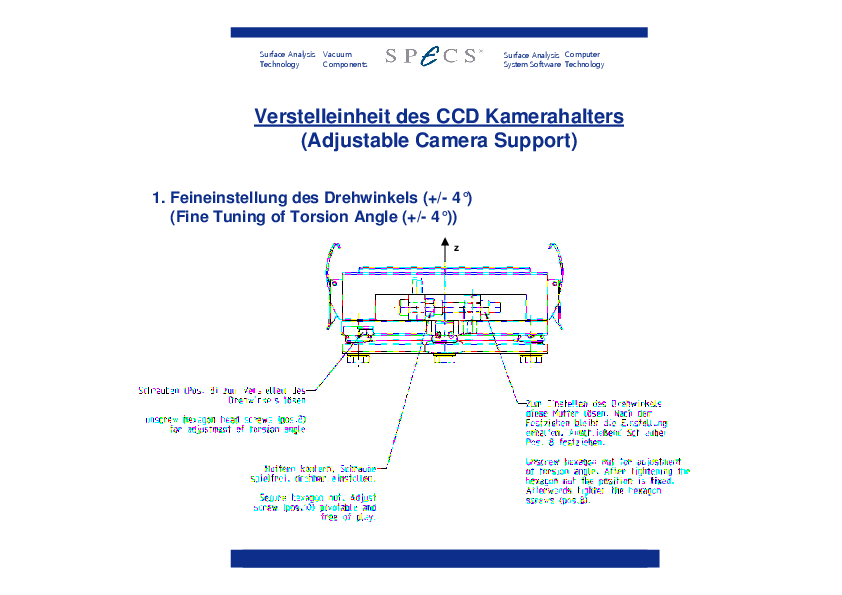

Detector

1D-DLD

Measurement Modes

Snapshot mode, Sweeping mode, Fixed energy mode

Energy Window

13% of Pass Energy

Electric Isolation

up to 3.5 keV

Electronics

HSA 3500 plus HT102

Working Pressure

up to 1 mbar (up to 10-4 mbar without nozzle)

Mounting
Mounting Flange

DN100 CF (8" OD)

Working Distance

300 - 500 µm (for standard nozzle with 300 µm diameter)

Performance
Acceptance Angle

±15°

Angular Resolution

< 0.1°

Energy Resolution

< 2 meV

Lateral Resolution

< 100 µm

Smallest Acceptance Spot

100 µm

XPS Count Rates UHV

20 kcps*

XPS Count Rates 1 mbar

16 kcps*

Detector Channels

1900 x 1200 (with channel binning)

.

* Ag 3d, FWHM < 0.85 eV, non-monochromatic X-ray source XR 50, Mg Kα anode, 300 W, N2 gas atmosphere

RELATED PRODUCTS

14

SPARE PARTS

6
Product image
Product description
Article No.

Channelplates Set - 1 pair MCP 40

Spare channelplate set for all 40 mm CCD detectors

2060009045
Phosphor screen

Spare phosphor screen for all 40 mm CCD detectors. Exchange with channelplates is recommended.

2060008804
Cu gasket for PHOIBOS 150

PHOIBOS 150 analyzer main flange gasket for Releases R5, R6, R7

2074050088
Rotary feedthrough for IRIS

Replacement feedthrough for PHOIBOS Release R5 & R6 iris mechanism

2060001175
Spindle with Spur and Bevel Gear for Iris

Replacement spindle for PHOIBOS Release R5 & R6 iris mechanism

2055021656
Tubus 3 with Iris

Replacement iris mechanism for PHOIBOS Release R5 & R6

2079150291
