IQE 12/38 Beam Chopper

Externally Controlled Beam Chopping for IQE 12/38 Scannable Ion Source

IQE 12/38 Beam Chopper is an externally controlled beam chopping unit for IQE 12/38 scannable ion source. It can be used in off mode, continuous mode and in pulsed mode. The pulse frequency can be adjusted between 0 - 50 kHz, with pulse width range of 2 µs - 100 µs, with longer pulses available on request. It also has an adjustable delay between trigger slope and electron pulse of 0 - 8 µs, with customized versions available on request.

KEY FEATURES

  • Beam modes: off, continuous, pulsed
  • Pulse trigger: external TTL signal
  • Pulse frequency: 0 - 50 kHz
  • Pulse width: 2 μs -100 μs

MADE FOR THESE METHODS

1
(LE)ISS
Low Energy Ion Scattering Spectroscopy (LEISS) is the most surface sensitive method for chemical analysis. Only the topmost layer is probed.

DOWNLOADS

1

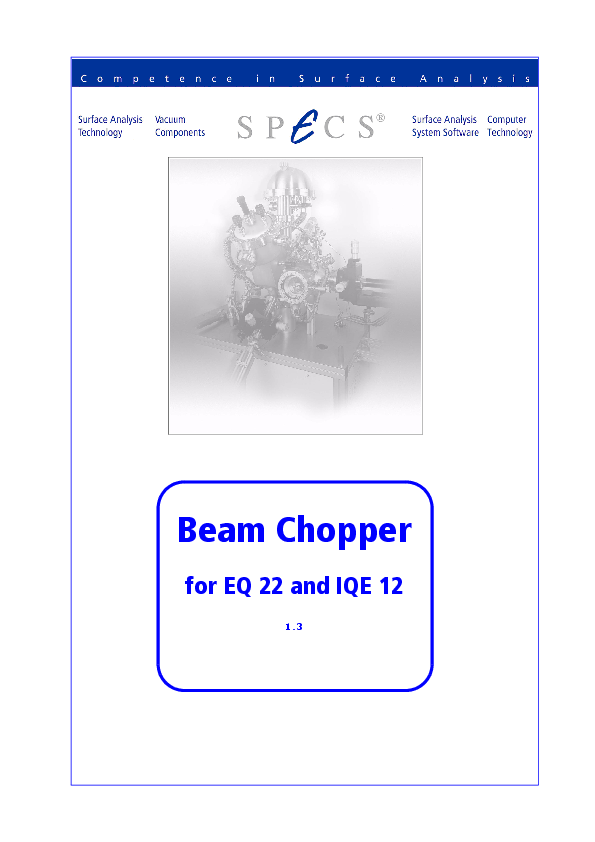

Beam Chopper for EQ22 and IQE12
Manuals
Beam Chopper for EQ 22 and IQE 12
Beam Chopper electronics for electron source EQ 22/35 and ion source IQE 12/38. To be used in conjunction with PU-EQ 22 and PU-IQE 12.
