µ-FOCUS 350 NAP

µ-FOCUS 350 High Performance Ultra Small-Spot X-Ray Monochromator for Near Ambient Pressure Applications

The µ- FOCUS 350 NAPultra small spot  X-ray monochromator enables high resolution XPS measurements in near ambient pressure in the laboratory, without using the synchrotron facilities. The high performance monochromator is available with Rowland circle diameter of 350 mm. As well due to its overall compactness it also matches customer chambers as a bolt-on component. Al anode X-ray source is used in combination with this monochromator. The monochromator comes with NAP extension.The achieveble spot size is 50 μm, which is unique to only to SPECS small spot monochromators.

KEY FEATURES

  • Suitable for near ambient pressure applications
  • Mounting flange DN100CF
  • Al excitation line
  • Rowland Circle 350 mm diameter
  • Guaranteed spot size on the sample of 50 µm

MADE FOR THESE METHODS

2

SPECIFICATIONS

µ-FOCUS 350 NAP
Operation
Power

Al 125 W

Maximum Anode Voltage

15 kV

Dual Anode

No

Working Conditions

UHV and NAP

Required Accessories

CCX 125 MF Isolation Unit

Differential Pumping Package

Closed-Cycle Water Cooling System

Optional Accessories

n.a.

Monochromated

Yes

Mounting
Anode Materials Available

Al

Power Supply

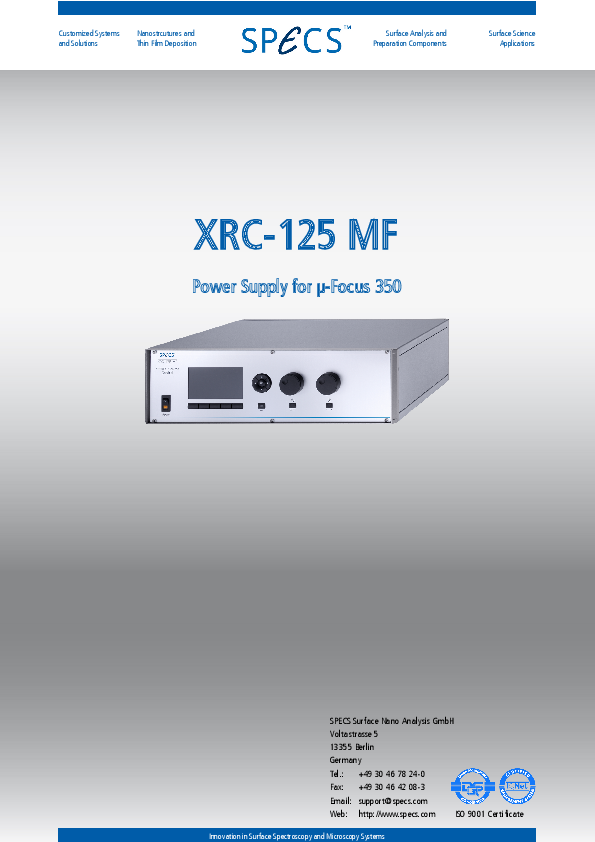

XRC 125 MF

Mounting Flange

requires special chamber geometry

Insertion Depth

n.a.

Rowland Cirlce Diameter

350 mm

Performance
Cross Talk

n.a.

Spot Size

< 50 µm
