PHOIBOS 225 1D-DLD

High Peformance Hemipsherical Energy Analyzer with 1D-DLD detector for UPS, XPS, ISS and LEISS.

The PHOIBOS 225 hemispherical energy analyzer is a powerful tool for modern photoelectron spectroscopy. This analyzer can be operated in all relevant analysis modes, such as XPS, UPS, as well as AES, ISS and LEISS. Its design and the modular supplementary hardware makes this analyzer the most versatile PES analyzer in the market. It can easily be upgraded with all available SPECS detection systems.

The integrated 1D-DLD detector is the best performing detection system available. The direct detection of electron signals yield quantitative counts per second (cps). The powerful electronics can aquire ultrafast snapshot measurements of the energy spectrum with up to 1200 energy channels as well as continous sweeping energy spectra. Its low dark count rate and high linearity make this detector outstanding for XPS analyis.

The energy analyzer section is equipped with 8 customizable entrance and 3 exit slits for UPS and XPS. The analyzer comes with a highly stable power supply, the HSA 3500 plus, for best performance in a wide kinetic energy range up to 3500 eV kinetic energy.

KEY FEATURES

  • 225 mm Mean Radius
  • Quantitative Analysis
  • High Count Rate and Linearity
  • Low Noise and Dark Count Rate
  • 65 mm Detector Area
  • Fast Snapshot Measurements

MADE FOR THESE METHODS

3

SPECIFICATIONS

PHOIBOS 225 1D-DLD
Operation
Energy Dispersion by

Hemisphere

Slits/Apertures

8 Entrance, 3 Exit slits and Iris aperture

Lens Modes

  • Angular resolved Mode
  • Transmission Mode
  • Spatially resolved Mode
  • Angular resolved

    Acceptance Angle

    ±15°

    Kinetic Energy Range

    0 - 3500 eV

    Pass Energies

    0 - 550 eV continously adjustable

    Detector

    1D-DLD Detector

    Detector Channels

    Max. 960 energy channels (240 and 120 channels for binning 4 and 8, respectively)

    Measurement Modes

  • Snapshot Mode
  • Sweeping Mode
  • Fixed Mode
  • Energy Window

    14% of Pass Energy

    Electronics

    HSA 3500 plus HT 100

    Working Pressure

    10-11 to 10-7 mbar

    Mounting
    Mounting Flange

    DN150 CF

    Magnetic Shielding

    Double µ-Metal Shielding

    Working Distance

    40 mm

    Electric Isolation

    up to 7 keV

    Performance
    Angular Resolution

    < 0.3°

    Energy Resolution

    <5 meV for XPS

    Lateral Resolution

    < 100 µm

    XPS Count Rates UHV

    SPARE PARTS

    5
    Product image
    Product description
    Article No.

    DN40CF 4-fold SMB Feedthrough for DLD

    Spare electrical feedthrough for all DLD detectors. Connection flange for the ACU unit

    2100011768
    Cu-wiregasket PHOIBOS 225 DN700COF

    PHOIBOS 225 analyzer main flange gasket. Please report SN before ordering

    2060002198
    Rotary feedthrough for IRIS

    Replacement feedthrough for PHOIBOS Release R5 & R6 iris mechanism

    2060001175
    Spindle with Spur and Bevel Gear for Iris

    Replacement spindle for PHOIBOS Release R5 & R6 iris mechanism

    2055021656
    Tubus 3 with Iris

    Replacement iris mechanism for PHOIBOS Release R5 & R6

    2079150291

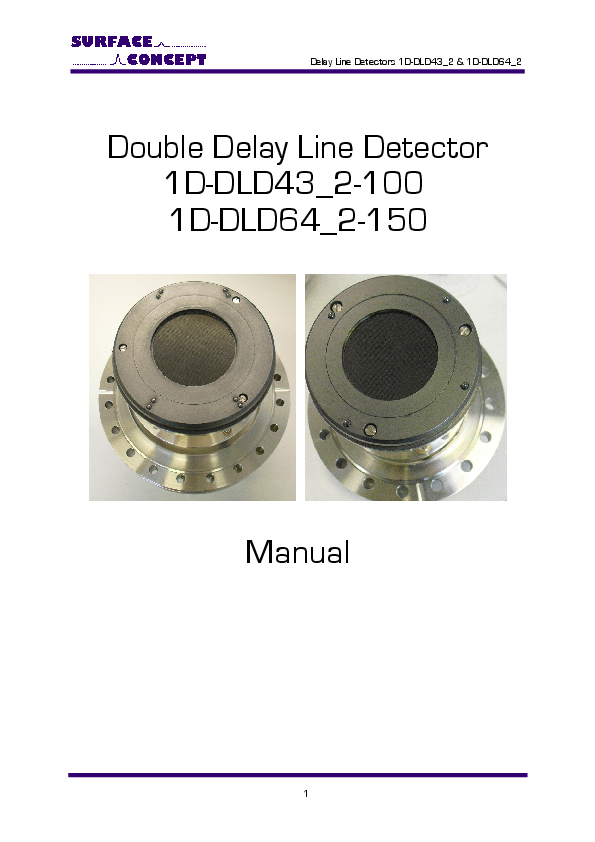

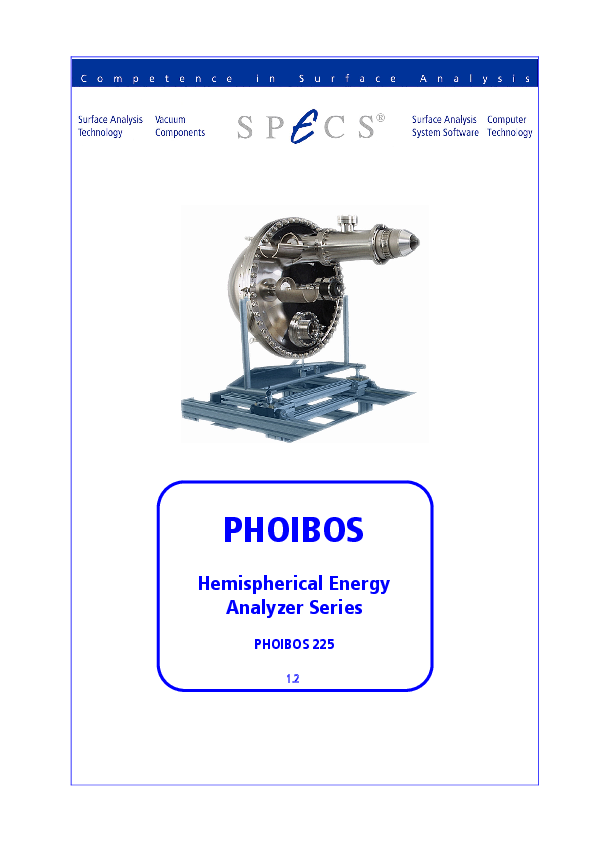

    DOWNLOADS
