µ-FOCUS 730 HE

µ-FOCUS 730 HE small spot monochromatic hard X-ray source with Cr-anode for state-of-the-art HAXPES and NAP-HAXPES investigations

The µ-FOCUS 730 HE X-ray monochromator with Cr-anode is ideally suited for high resolution HAXPES measurements in the laboratory. By using an excitation energy of 5.4 keV (Cr Kα line), a deeper insight into the analyzed material is possible.

The µ-FOCUS 730 HE is a bolt-on component with spot sizes ranging between 200 μm to 600 μm, that can be operated in UHV, as well as under Near Ambient Pressure (NAP) conditions. The setup of anode, crystal and sample is following the classical Rowland geometry with a small Rowland circle diameter of 730 mm for small spot size stability and flux optimization. It can be combined with every PHOIBOS HV analyzer for most demanding UHV or NAP-HAXPES application. As well, it can be integrated in customized systems for dedicated HAXPES measurements.

KEY FEATURES

  • Monochromatic Cr Kα excitation energy with 5.4 keV, suitable for laboratory HAXPES
  • High Photon Flux up to 1 · 1010 photons/s
  • Spot size on the sample:  between 200 µm and 600 µm
  • Near Ambient Pressure compatibility with NAP extension
  • Rowland Circle with 730 mm diameter
  • Compact bolt-on component design on DN100CF mounting flange

MADE FOR THESE METHODS

1

SPECIFICATIONS

µ-FOCUS 730 HE
Operation
Power

150 W for Cr anode

Maximum Anode Voltage

30 kV

Dual Anode

No

Working Conditions

UHV

Required Accessories

Closed-Cycle Water Cooling System

Optional Accessories

Differential Pumping Package

Monochromated

Yes

Mounting
Anode Materials Available

Cr anode

Mounting Flange

DN100 CF

Insertion Depth

n.a.

Rowland Cirlce Diameter

730 mm

Performance
Cross Talk

n.a.

Spot Size

variable spot size: 200 µm - 600 µm

Photon Flux

1 x 1010 photons/s

RELATED PRODUCTS

8

DOWNLOADS

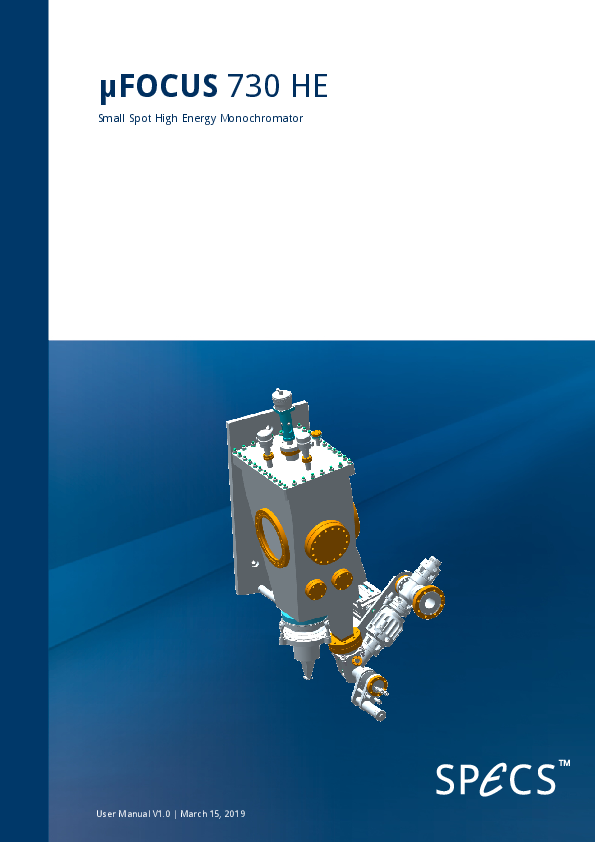

1
