PHOIBOS 150 WAL 2D-CMOS/-CCD

Wide Angle Analyzer for ARXPS with 150 mm Mean Radius with 2D CMOS detector and ±30° Accpetance Angle.

The PHOIBOS 150 hemispherical energy analyzer is a powerful tool for modern photoelectron spectroscopy. This analyzer can be operated in all relevant analysis modes, such as XPS, ARPES, as well as AES, ISS and LEISS. Its design and the modular supplementary hardware makes this analyzer the most versatile PES analyzer in the market. It can easily be upgraded with all available SPECS detection systems.

Its special wide angle lens covers the range of ±30° to efficiently cover the relevant wide angular range for angular resolved XPS. That allows to measure the depth profile of a sample at up to 3500 eV kinetic energy without sample destruction. Also ARPES (UV Range) with an identical accpetance angle is possible.

With a 2D CMOS detector is shows outstanding performance in countrate, linearity and a true pule counting mechanism. It combines a state of the art lens system with a proven hemipshere design for highest transmission and resolution. The analyzer can be operated in transmission (XPS/UPS), angular resolved (ARPES) and magnification mode (slab imaging).

The energy analyzer sectionis equipped with 8 customizable entrance and 3 exit slits. The analyzer comes with a highly stable power supply, the HSA 3500 plus, for best performance in a wide kinetic energy range.

KEY FEATURES

  • ±30° Acceptance Angle for ARPES(XPS)
  • Double µ-Metal Shielding
  • Up to 3500 eV Kinetic Energy
  • Desctruction Free Depth Profiling
  • 150 mm mean Radius

MADE FOR THESE METHODS

2

SPECIFICATIONS

PHOIBOS 150 WAL 2D-CMOS/-CCD
Operation
Kinetic Energy Range

0-3500 eV

Pass Energies

0-200 eV Continously Adjustable

Energy Dispersion

Hemisphere

Lens Modes

Transmission Mode, Angular Resolved Mode

Measurement Modes

Snapshot Mode, Sweeping Mode, Fixed Energy Mode

Detector

2D CMOS Detector

Slits/Apertures

8 entrance and 3 exit slits and iris aperture

Energy Window

13% of Pass Energy

Electronics

HSA 3500 +

Working Pressure

10-11 to 10-7 mbar

Performance
Energy Resolution

< 2.5 meV ultimate resolution

Angular Resolution

< 0.5° for 200 µm spot size

k-Resolution

N/A

Acceptance Angle

±30°

Lateral Resolution

N/A

Smallest Acceptance Spot

N/A

XPS Count Rates UHV

< 60 kcps @ 520 meV FWHM (Ag3d Al ka)

Detector Channels

1900 x 1200 (with Channel Binning)

Mounting
Working Distance

27.75 mm

Mounting Flange

DN150CF (8" OD)

Electric Isolation

> 10 keV

Magnetic Shielding

Double µ-Metal Shielding

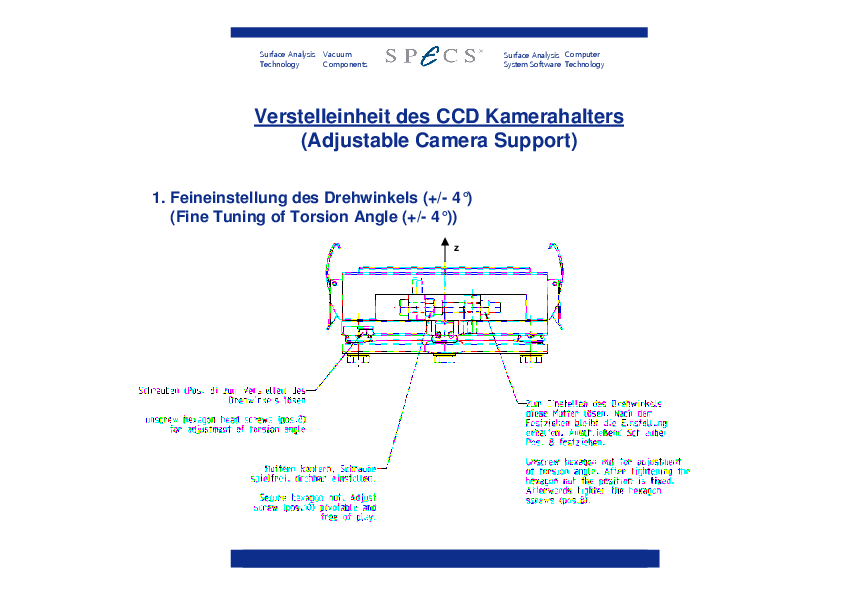

SPARE PARTS

2
Product image
Product description
Article No.

Channelplates Set - 1 pair MCP 40

Spare channelplate set for all 40 mm CCD detectors

2060009045
Phosphor screen

Spare phosphor screen for all 40 mm CCD detectors. Exchange with channelplates is recommended.

2060008804
