THEMIS 600 EP

State of the art time of flight (TOF) spectrometer for high resolution photoelectron spectroscopy. The combination with a 2D-DLD detector is ideally suited for pulsed photon sources.

TOF spectrometer

This product is discontinued

The THEMIS 600 TOF spectrometer is a state of the art time of flight (TOF) spectrometer for high resolution photoelectron spectroscopy in near ambient pressure (NAP). The instrument comes with 3D-DLD three-dimensional delayline detector with chevron stack MCP, HSA 3500 plus control unit. The instrument is a modification of TOF spectrometer THEMIS 600 with differential pumping stage for elevated pressure applications up to at least 10^-5mbar.

KEY FEATURES

Parallel angle and energy detection with up to +/- 15° and 70 eV windows
Accelerating and retarding modes with
0.05 - 1000 retarding ratio
Angular resolving, magnifying and transmission
lens modes
Angular resolution: <0.07° @ 0.25 mm spot size
Energy resolution: <2 meV
Mounting flange DN100CF

MADE FOR THESE METHODS
RELATED PRODUCTS
DOWNLOADS

MADE FOR THESE METHODS

2

NAP-XPS and NAP-UPS

X-ray Photoelectron Spectroscopy (XPS) and Ultraviolet Photoelectron Spectroscopy (UPS) are well-established and versatile techniques commonly used...

Angle-Resolved Photoelectron Spectroscopy detects the energy and angle distribution of photoelectrons to determine the electronic structure of solids.

RELATED PRODUCTS

2

Advanced and Modular ToF Momentum Microscope

ASTRAIOS 190 2D-CMOS

2D Momentum Mapping Electron Analyzer for ARPES

DOWNLOADS

6

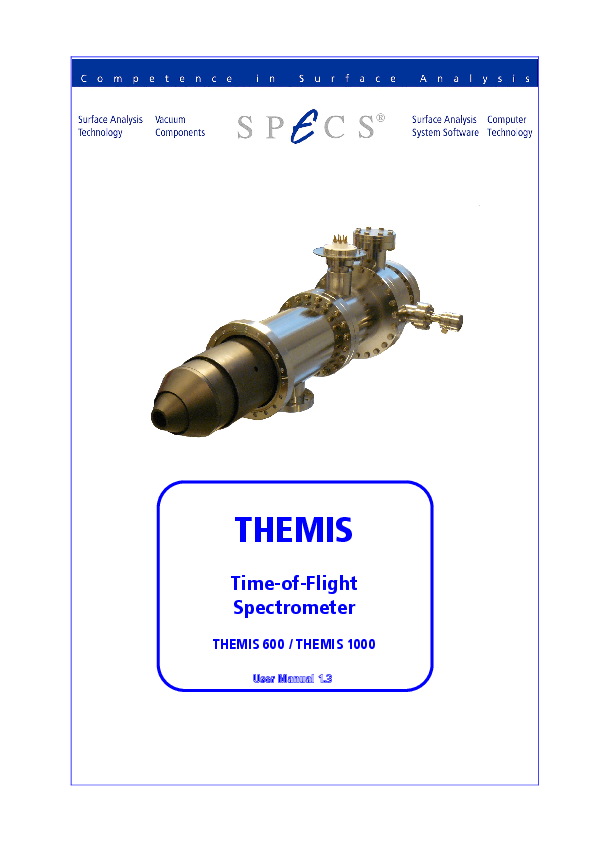

THEMIS 600/1000

THEMIS Time-of-Flight Spectrometer THEMIS 600 / THEMIS 1000 — Time-of-Flight spectrometer series with 3D delayline detector and electron lens optimized for experiments ranging from extreme resolution spectroscopy to high transmission snapshots.

Please login to download this file

HSA 3500plus

HSA 3500plus Power Supply — HSA 3500 family of power supplies including HSA 3500plus, HSA 7000plus and HSA 15000plus. To be used in conjunction with PHOIBOS Hemispherical Energy Analyzers and THEMIS Time-Of-Flight Spectrometers.

Please login to download this file

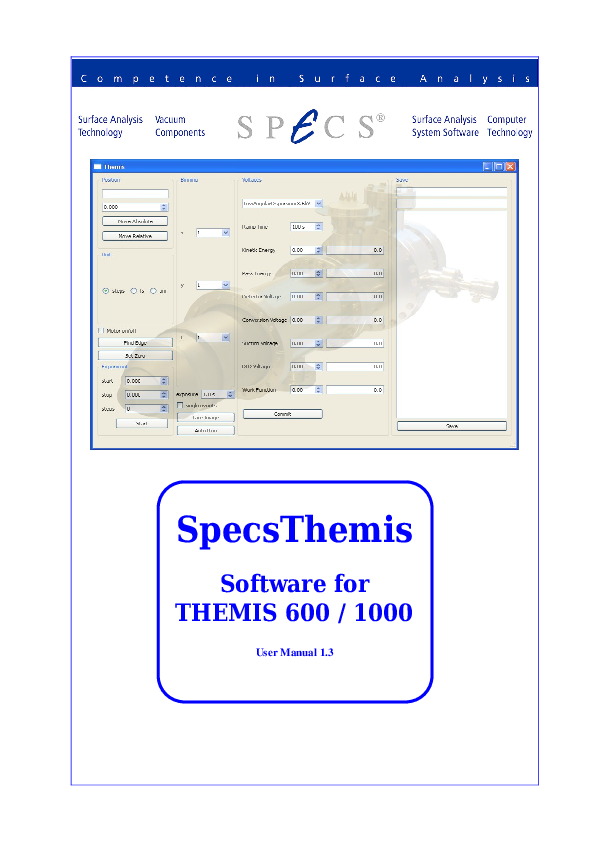

Software THEMIS 600/1000

SpecsThemis Software for THEMIS 600 / 1000 — Data acquisition and data processing program for the Time-of-flight-spectrometers THEMIS 600 and THEMIS 1000.

Please login to download this file

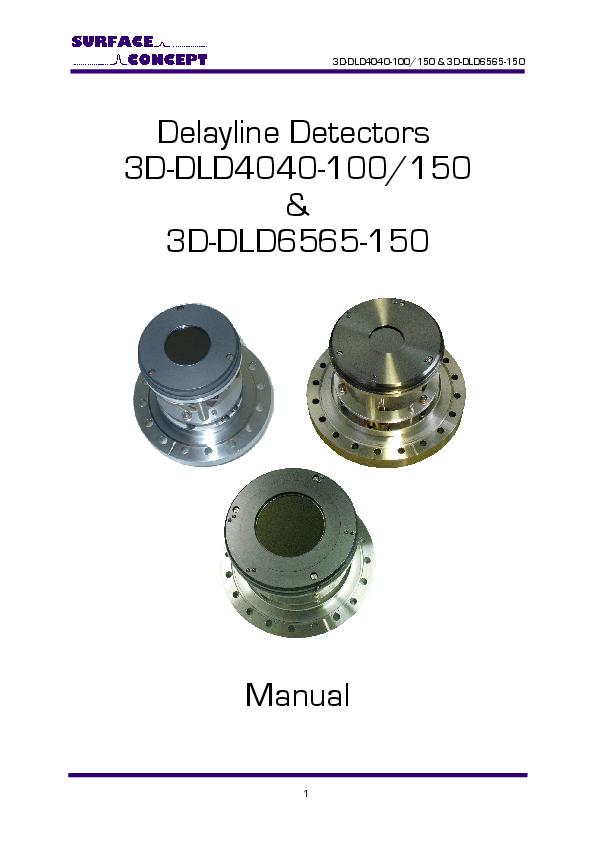

2D-DLD4040-100/150 & 2D-DLD6565-150

Delayline Detectors 3D-DLD4040-100/150 & 3D-DLD6565-150 — Delayline detector 3D-DLD4040-100, 3D-DLD4040-150 and 3D-DLD6565-150 (Release 5g, 5e2, and 5f2 for use with PHOIBOS Hemispherical Analyzer Series - installation, operation and maintenance.

Please login to download this file

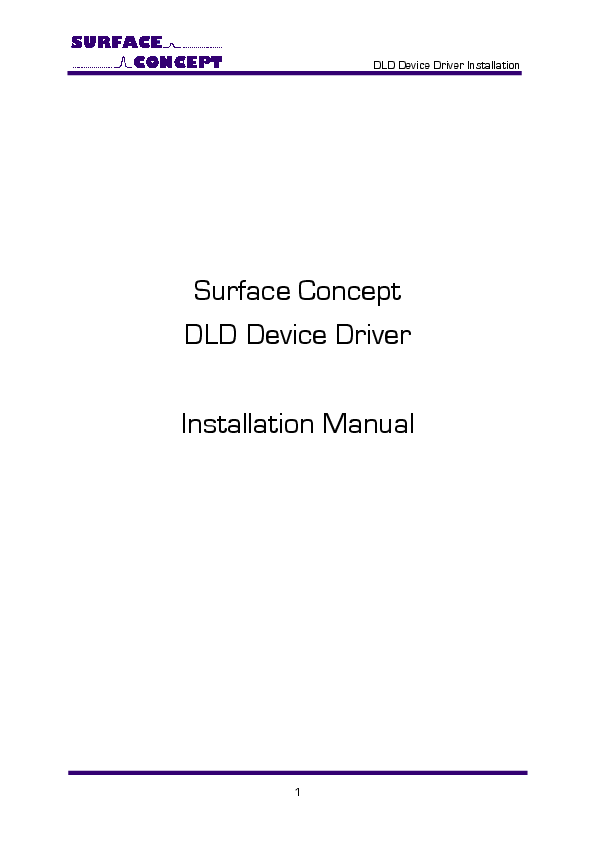

DLD Device Driver Installation

Surface Concept DLD Device Driver Installation — Surface Concept DLD Device Driver for Windows 7 (64/ 32 bit) - installation.

Please login to download this file

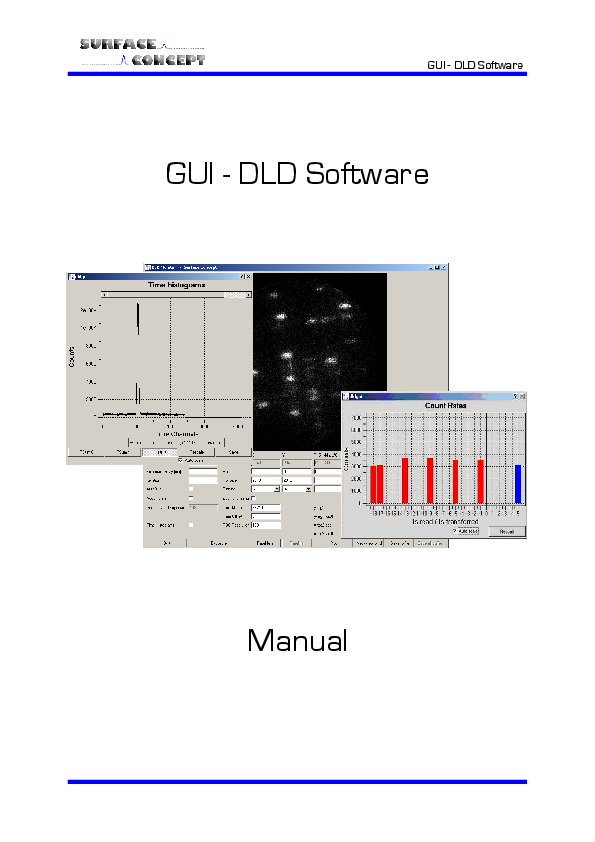

GUI Software

GUI - DLD Software — Test software for DLD graphical user interface.

Please login to download this file
